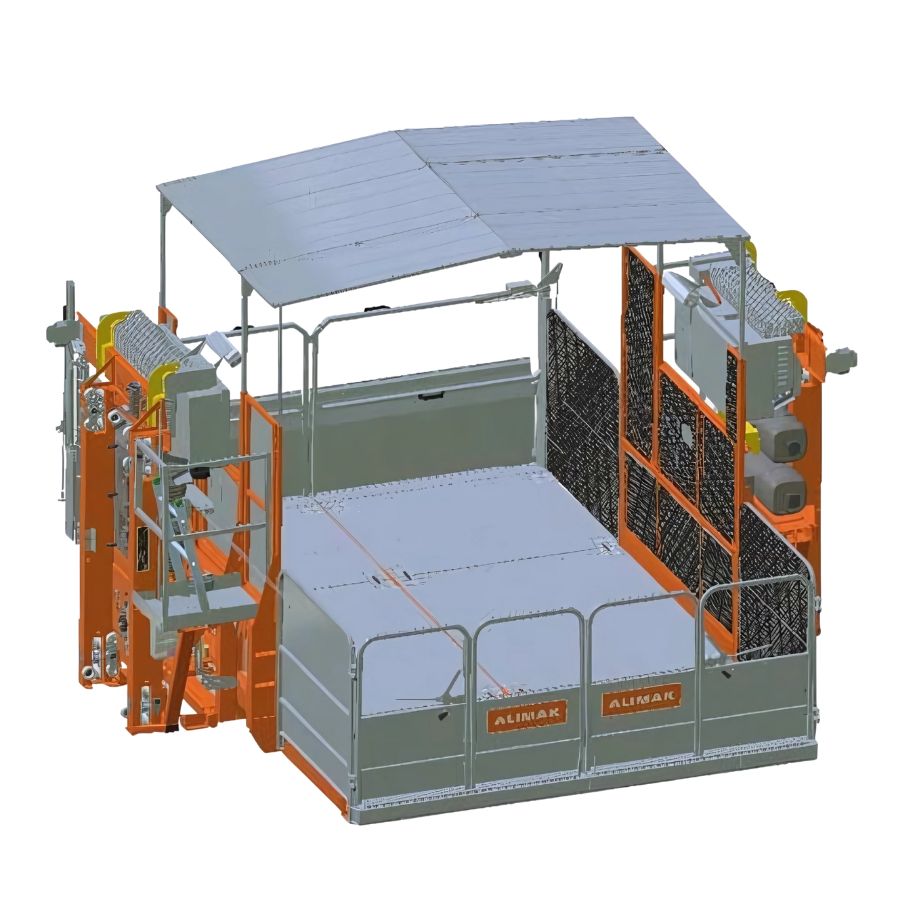

Alimak Vectio 650
Large-Capacity Transport Platform for Bulky Loads and Personnel
The Alimak Vectio 650 is a next-generation transport platform engineered to handle the challenges of modern construction. With platform sizes of up to 14.7 m² and payload capacities up to 3,700 kg, it is ideal for transporting large prefabricated pods, façade elements, cladding panels and other oversized goods.
Designed to operate in either Material Hoist (MH) or Transport Platform (TP) mode, the Vectio 650 combines safety, speed and flexibility. Available in both single- and twin-mast configurations, and fully compatible with the Alimak Scando 650 system, it offers unparalleled integration for large-scale vertical logistics.
Technical Specifications
| Feature | Single Mast | Twin Mast |
|---|---|---|
| Payload Capacity | 2,500 kg | 3,700 kg |
| Max. Passengers (TP/MH) | 7 / 0* | 7 / 0* |
| Speed (TP / MH) | 12 / 24 m/min | 12 / 24 m/min |
| Platform Width (internal) | 1.5 m | 3.0 m |
| Platform Lengths (internal) | 3.1 / 3.8 / 4.5 / 4.9 m (modular) | |
| Lifting Height (max) | 100 m | 100 m |
| Tie Distance / First Anchor | 15 m / 15 m | 15 m / 15 m |
| Motor Power | 2 × 10 kW | 4 × 10 kW |
| Power Supply | 400–480 V, 50/60 Hz, 3 phase | |
| Mast Section Size | 650 x 650 mm, tubular steel with rack | |
Applications
- Vertical transport of large cladding and glazing units
- Prefabricated bathroom and utility pods
- Scaffold-heavy sites with limited crane time
- High-rise commercial and residential developments
- Dual-mode logistics (people and goods) on tight schedules
Optional Configurations
- Foldable platform doors or manual ramps
- My Alimak connectivity for remote diagnostics
- Customised platform lengths up to 4.9 m
- Scando 650 mast, tie, gate, and accessory compatibility
- Platform lighting, audible alarm and call station integration
- Integration with twin Scando 650 hoists for hybrid systems
Key Benefits of the Vectio 650
Market-Leading Capacity
Lift up to 3,700 kg with 14.7 m² platform space.
Modular Design Flexibility
Multiple platform lengths and dual mast options for site-specific logistics.
Compatible with Scando 650
Shares mast and tie system with Scando 650 — ideal for large sites.
Digitally Connected
Equipped with My Alimak portal access for performance monitoring and predictive maintenance.
Dual Mode Operation
Switch between Transport Platform (TP) and Material Hoist (MH) based on on-site needs.
Fast, Efficient Vertical Access
Lift speeds of up to 24 m/min, even with bulky cargo.
Need a Vectio 650 Installed?
We supply and install the Alimak Vectio 650 for high-volume construction projects. From planning to installation and aftercare, Archis Hoist Solutions provides full-service support and compliance.
